Lever Wire Connectors
Lever Wire Connectors

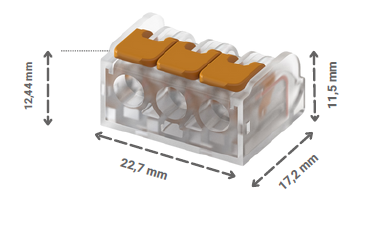

The MPB series lever wire connectors from Klemsan bring a powerful combination of flexibility, speed, and reliability to commercial applications and control panel wiring. Designed to simplify installation while maintaining performance and safety, the MPB series fills a critical role in modern electrical design. A modern way to jumper or connect conductors – HOT, Neutral, Ground, Power, Signals; whatever it may be – quickly and efficiently. Replace your “Wire Nut” with the MPB Series.
Item # |
List Price |
Numbers of Poles |
Maximum Load Current |
Conductor Cross Section |
Inflammability Class |
Nominal Voltage |
Continuous Operating Temp Max |
Stripping Length |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|
| KL425520 KL425520/Asset/425520.PNG | $0.47 | Numbers of Poles N/A 2 | Maximum Load Current N/A 41 A | Conductor Cross Section N/A 18-10 AWG | Inflammability Class N/A V2 | Nominal Voltage N/A 450 V | Continuous Operating Temp Max N/A 221 °F | Stripping Length N/A .43 in |
Add To Cart
Request Quote |
| KL425530 KL425530/ImgCustom/1002/placeholder_notavailable.gif | $0.60 | Numbers of Poles N/A 3 | Maximum Load Current N/A 41 A | Conductor Cross Section N/A 18-10 AWG | Inflammability Class N/A V2 | Nominal Voltage N/A 450 V | Continuous Operating Temp Max N/A 221 °F | Stripping Length N/A .43 in |
Add To Cart
Request Quote |
| KL425550 KL425550/ImgCustom/1002/placeholder_notavailable.gif | $0.94 | Numbers of Poles N/A 5 | Maximum Load Current N/A 41 A | Conductor Cross Section N/A 18-10 AWG | Inflammability Class N/A V2 | Nominal Voltage N/A 450 V | Continuous Operating Temp Max N/A 221 °F | Stripping Length N/A .43 in |
Add To Cart
Request Quote |
