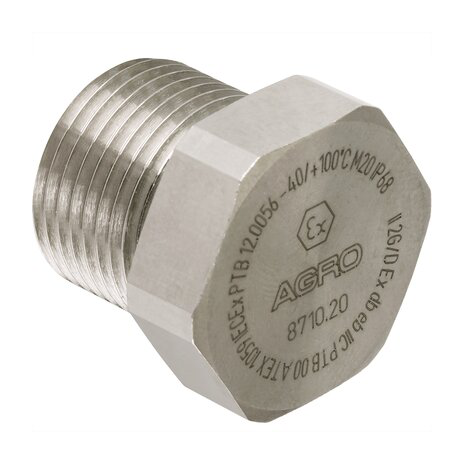

Locking screw brass M20x1.5 Ex d IIC, with o-ring
Unit of Measure
Specifications
EAN |
N/A 7611614140216 |
Thread Type |
N/A Metric |
Clamping Technology |
N/A Compression |
Thread |
N/A M20x1.5 |
Wrench Size |
N/A 24 mm |
Material |
N/A Metal |
Material Detail |
N/A Brass |
Ingress Protection |
N/A IP68, IP68 |
Ingress Protection Conditioned |
N/A IP68 at 30 bar |
Explosion Tested Design |
N/A 1 |
Ex Zone |
N/A zone1To2G21To22D |
Gas Protection Class |
N/A II2GExdbebIICGb |
Dust Protection Class |
N/A ExSerie18D |
IEC-Test |
N/A iecEN60079-0,iecEN60079-1,iecEN60079-31 |
