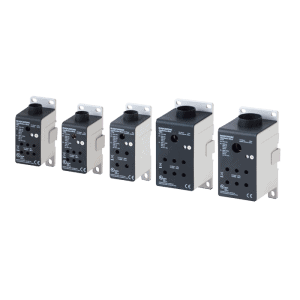

Power Distribution Blocks allow easy connection of conductors to distribute power from one load into multiple smaller loads. They are installed downstream of a disconnect switch, transfer switch, or circuit breaker.
IP20 Finger Safe Protection
- IP20 rated.
- Finger-safe design provides touch safe protection from live parts.
Wide Range
The extent of the range makes it possible to find the distribution system adapted to its needs:
- 5 single pole power distribution blocks UL,
- 4 single pole power distribution blocks UR,
- 1 multipolar power distribution blocks UR.
Easy Integration
Compactness of the different distribution blocks allows an easier integration into the equipment and allows for either DIN rail mounting on direct panel mounting.
Flexibility of Wiring
Allows use of standard solid, stranded and fine wire strands with use of compression sleeve.
UL & IEC range
The range of distribution blocks comply to the UL standards & the IEC standards.
These can be mounted on DIN Rail and /or Panel Mounted device.
Accepts 1 larger wire and distributes to up to 6 smaller conductors.
+85 A to 380 A
+ 1000 VAC rated
+ UL, CUL and IEC rated
| 54UL1008 | 28.00 | Power Distribution Block, 85A, DIN or Panel mount, UL, IEC, cUL approved, 1 wire 3-14 AWG in, 6 wires 8-14 AWG out |
| 54UL1012 | 36.00 | Power Distribution Block, 115A, DIN or Panel mount, UL, IEC, cUL approved, 1 wire 1-14 AWG in, 6 wires 4-14 AWG out |
| 54UL1017 | 50.00 | Power Distribution Block, 175A, DIN or Panel mount, UL, IEC, cUL approved, 1 wire 2/0-14 AWG in, 4 wires 4-14 AWG out |
| 54UL1025 | 64.00 | Power Distribution Block, 255A, DIN or Panel mount, UL, IEC, cUL approved, 1 wire 250-2 kcmils in, 6 wires 2-14 AWG out |
| 54UL1040 | 77.00 | Power Distribution Block, 380A, DIN or Panel mount, UL, IEC, cUL approved, 1 wire 500-2/0 kcmils in, 6 wires 8-14 AWG |
