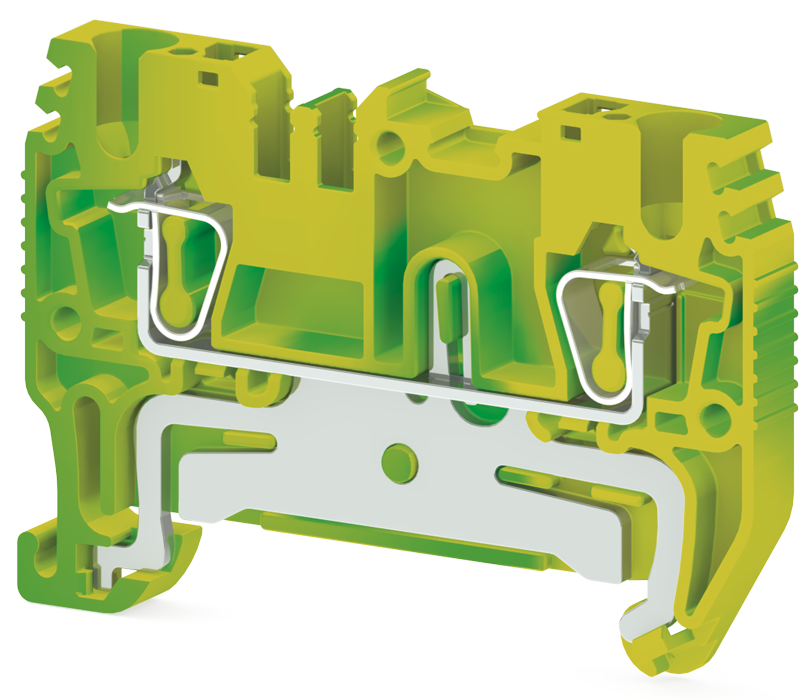

2.5 mm², Spring connection, Earth terminal block with 2 conductors, Insulation material PA, Yellow-Green
Unit of Measure
Specifications
Manufacturer |
N/A Klemsan |
Type Number |
N/A SRD 2,5T (SARI-YESIL) |
Supplier |
N/A Klemsan |
Order Number |
N/A 337120 |
Certification General |
N/A CE (EN 60947-7-2) |
Width |
N/A 5.15 mm |
Height |
N/A 52.50 mm |
Depth |
N/A 29.80 mm |
Total Depth |
N/A 36.00 mm |
Weight |
N/A 0.009044 kg |
Wire Size |
N/A 28 to 12 AWG |
Cross-Section |
N/A 0.08 to 4 mm² |
Color |
N/A Yellow-Green |
Material |
N/A Polyamide (PA 66) |
Degree of Protection |
N/A Ingress Protection (20/PE) |
Cross-Section Connection Point |
N/A 4 mm² |
Quantity |
N/A 50 |
