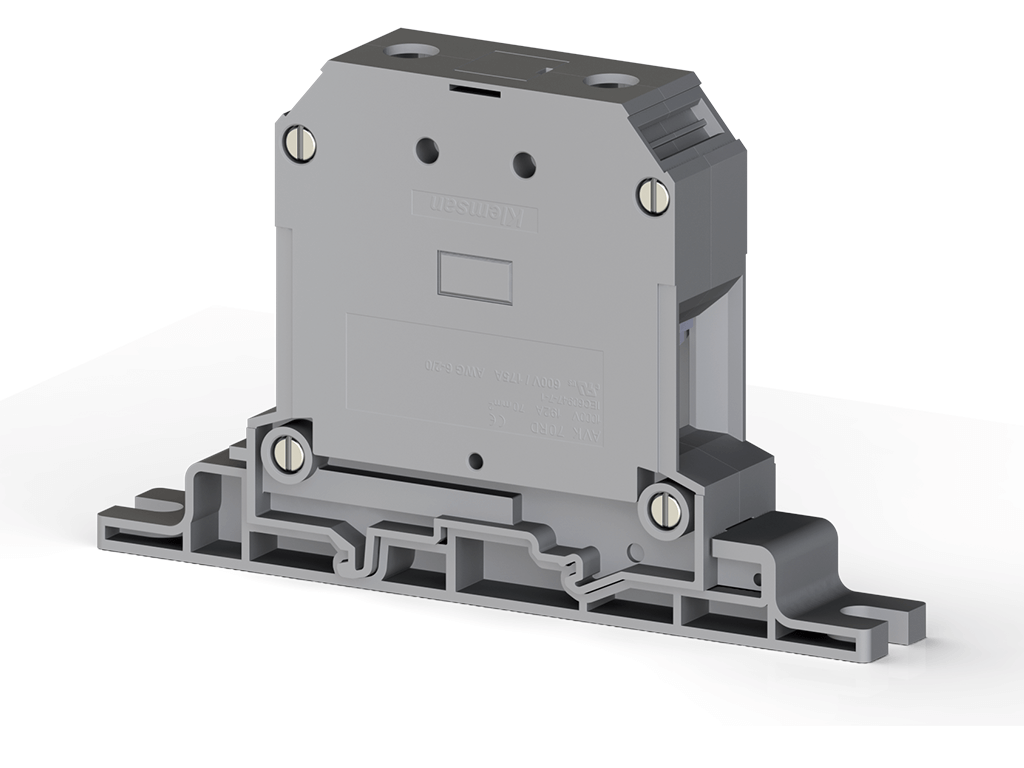

70 mm², Hex socket head bolt connection, Panel mount feed-through terminal block, Insulation material PA, Gray
Unit of Measure
Specifications
Manufacturer |
N/A Klemsan |
Type Number |
N/A AVK PB 70 RD |
Supplier |
N/A Klemsan |
Order Number |
N/A 304450 |
Certification General |
N/A CE (EN 60947-7-1) |
Width |
N/A 22.00 mm |
Height |
N/A 135.40 mm |
Depth |
N/A 82.47 mm |
Total Depth |
N/A 82.47 mm |
Weight |
N/A 0.166000 kg |
Color |
N/A Gray |
Material |
N/A Polyamide (PA 66) |
Degree of Protection |
N/A Ingress Protection (IP10) |
Cross-Section Connection Point |
N/A 70 mm² |
Cross-Section |
N/A 16 to 70 mm² |
Wire Size |
N/A 6 to 2/0 AWG |
DIN Current |
N/A 192 A |
IEC Current |
N/A 192 A |
DIN Voltage |
N/A 1000 V |
IEC Voltage |
N/A 1000 V |
Quantity |
N/A 10 |
