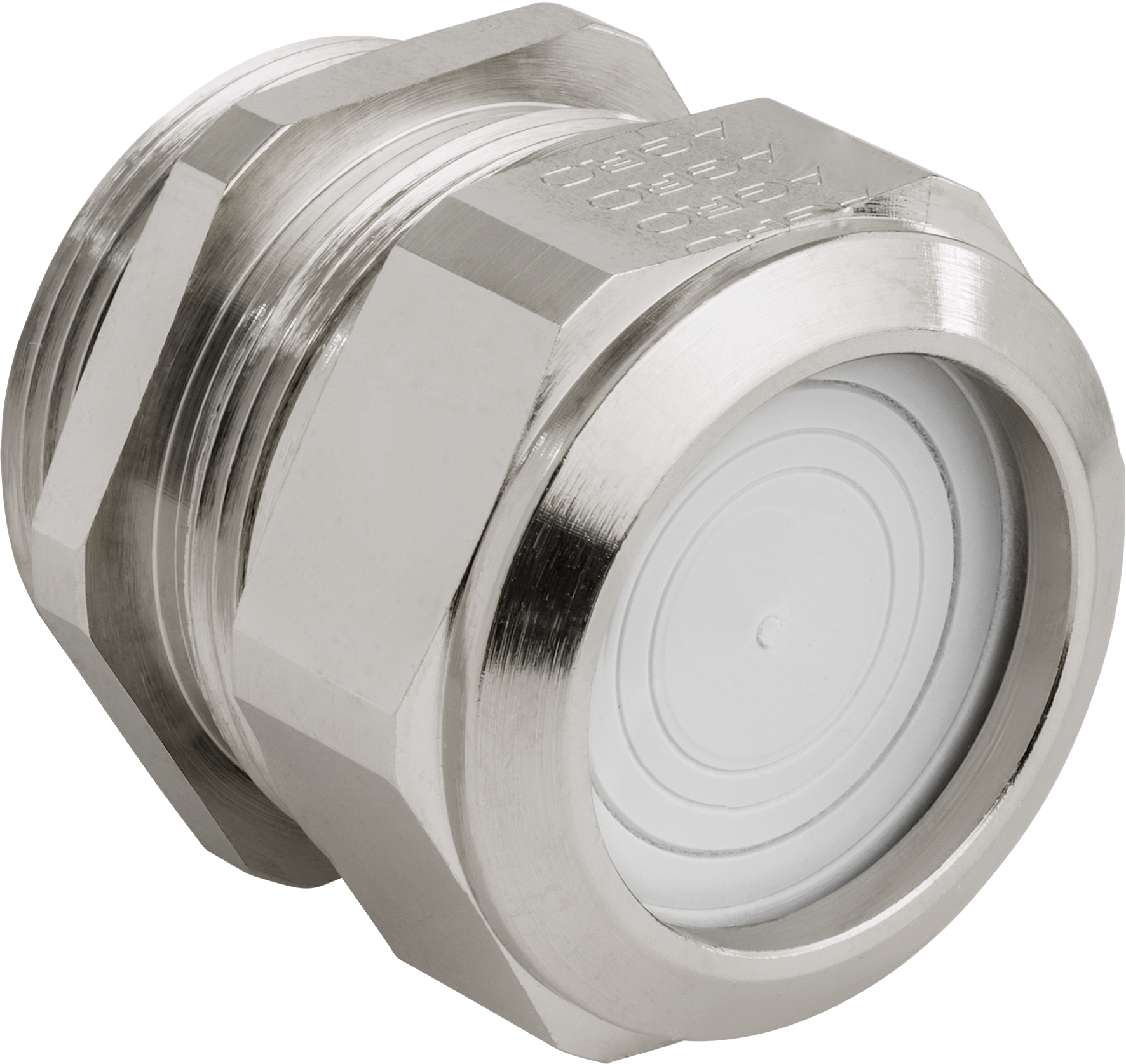

FP-Cable gland Progress ML brass M20x1.5 N 45545 Cable Ø 4.0 - 15.0mm multiLAYER, with dust protection
Unit of Measure
Specifications
Nominal Thread Size |
N/A 20 |
Pitch Thread |
N/A 1.5 mm |
Thread Length |
N/A 6 mm |
Wrench Width |
N/A 24 mm |
Hexagon Angular Dimension |
N/A 27.72 mm |
Suitable for Cable Diameter |
N/A 50 to 150 mm |
Material |
N/A Metal |
Material Quality |
N/A Brass |
Surface Protection |
N/A Nickel-Plated |
Halogen Free |
N/A Yes |
Degree of Protection |
N/A Ingress Protection (IP69K) |
Shock Resistant |
N/A Yes |
Model |
N/A Straight |
With Strain Relief |
N/A Yes |
Type of Sealing |
N/A Sealing Ring |
Operating Temperature |
N/A -50 to 105 ºC |
For Ex-Zone Gas |
N/A None |
For Ex-Zone Dust |
N/A None |
EAN |
N/A 7611614332253 |
