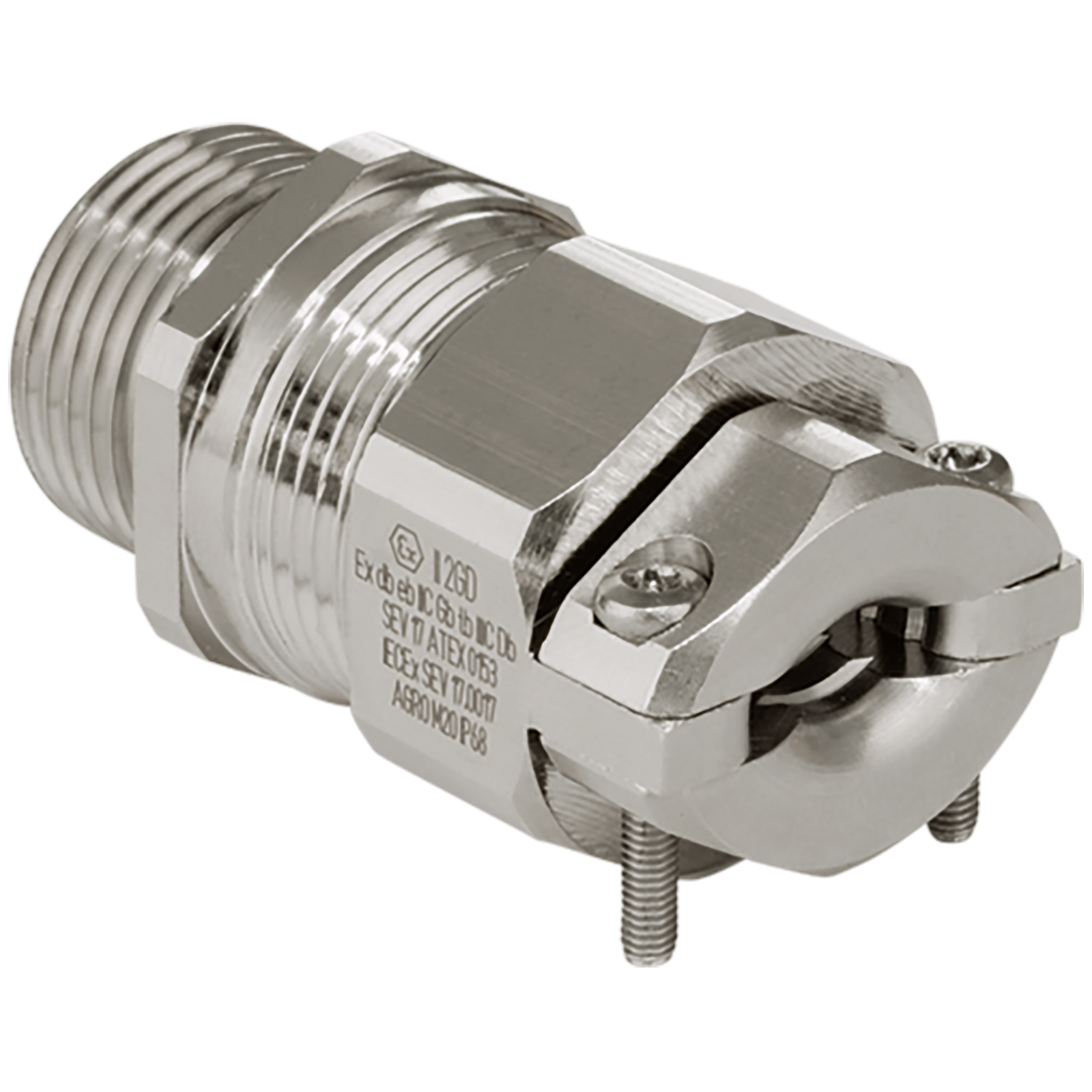

Cable gland Ex Compact brass KB M63x1.5 Ex d IIC / Ex e II cable Ø 43.0-50.0 mm with clamps
Unit of Measure
Specifications
Material |
N/A Metal |
Nominal Thread Size |
N/A 63 |
Pitch Thread |
N/A 1.5 mm |
Thread Length |
N/A 14 mm |
Wrench Width |
N/A 70 mm |
Suitable for Cable Diameter |
N/A 43.0 to 50.0 mm |
Material Quality |
N/A Brass |
Surface Protection |
N/A Nickel-Plated |
Halogen Free |
N/A Yes |
Degree of Protection |
N/A Ingress Protection (IP68) |
Shock Resistant |
N/A Yes |
Model |
N/A Straight |
With Strain Relief |
N/A Yes |
Type of Sealing |
N/A Sealing Ring |
Operating Temperature |
N/A -60 to 105 ºC |
Explosion-Tested Version |
N/A Yes |
For Ex-Zone Gas |
N/A 1, 2 |
For Ex-Zone Dust |
N/A 21, 22 |
EAN |
N/A 7611614316239 |
