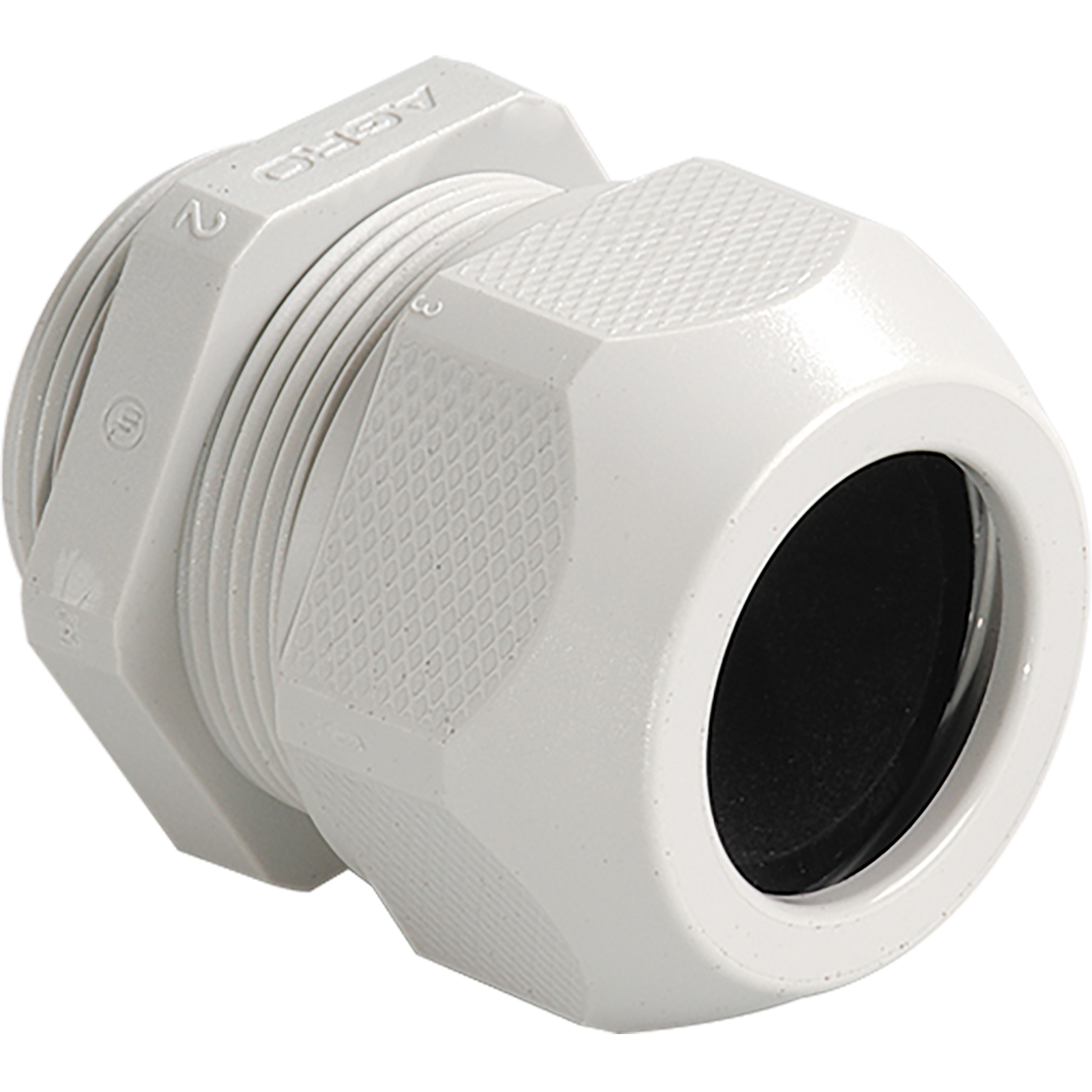

Cable gland Syntec synthetic M12x1.5 grey cable Ø2,5-6,5mm (UL 5-6.5mm)
Unit of Measure
Specifications
Nominal Thread Size |
N/A 12 |
Pitch Thread |
N/A 1.5 mm |
Thread Length |
N/A 6 mm |
Wrench Width |
N/A 15 mm |
Suitable for Cable Diameter |
N/A 2.5 to 6.5 mm |
Material |
N/A Plastic |
Material Quality |
N/A Polyamide (PA) |
Halogen Free |
N/A Yes |
Degree of Protection |
N/A Ingress Protection (IP68) |
Shock Resistant |
N/A Yes |
Model |
N/A Straight |
With Strain Relief |
N/A Yes |
Type of Sealing |
N/A Sealing Ring |
Operating Temperature |
N/A -30 to 100 ºC |
EAN |
N/A 7611614077901 |
